Water – the new target

Published:  04 April, 2018

mains water, Mark Hadaway, black water, non-potable, grey water, rainwater, runoff, natural water, abstraction licences, iron, manganese, scale, borehole, water filters, recycling, alternative water supplies, treatment, Lubron Water Technology
Mark Hadaway

Against a backdrop of rising mains water supply costs and climate change causing stress to water resources, building services engineers are under pressure to reduce water consumption and associated costs. Mark Hadaway considers the alternatives to mains water.

The quantity of water used per capita in buildings depends, of course, on the type of building and what is going on inside. Benchmark studies suggest about 50 L/day for commercial offices, 120 L/day for residential buildings and more than 500 L/day for acute hospitals.

The one common point is that no more than 10% of water consumed is used for drinking or food preparation. Most (about 50%) is used for toilet flushing and most of the rest for washing and laundry. In the majority of buildings, all of this water is taken from the mains drinking water supply.

Drinking water quality is essential to public health, as is appropriate treatment and disposal of black water, so it’s best for building services engineers not to get involved - leave it to the experts.

This leaves non-potable water services and waste grey water up for consideration as alternatives to the mains. Nonpotable supplies can be taken from any convenient source – private boreholes and rainwater harvesting are the commonest – but these will need treatment to adjust the quality to meet the requirements for use. Even allowing for treatment, the cost of this water will be an order of magnitude lower than that of mains water. But there is never something for nothing. Running potable and non-potable water systems means duplicate, and strictly segregated plumbing systems; easy to install in a new build but often prohibitively expensive as a retrofit.

Rainwater harvesting is a free source of water; but only when it rains. Climate change has changed the pattern of rainfall resulting in short, high intensity incidents. Rainwater is assumed to be of high purity but that depends on where it has fallen and with what it has been in contact. If it falls on roofs it will, inevitably, dissolve avian faecal matter including a variety of coliform bacteria.

Natural solutions

Runoff from hardstandings collects hydrocarbons and silt particles, not to mention salt from winter de-icing activities. There are, currently, no standards on harvested rainwater quality, but consideration of the application will influence the choice of treatment. In commercial buildings, it can be argued, it is the appearance – colour and clarity – of the water that is most important, and a simple filtration package will usually suffice. However, in a situation like a hospital, for example, a validated disinfection system will need to be included in the treatment process.

mains water, Mark Hadaway, black water, non-potable, grey water, rainwater, runoff, natural water, abstraction licences, iron, manganese, scale, borehole, water filters, recycling, alternative water supplies, treatment, Lubron Water Technology

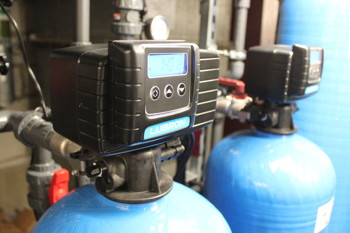

Incorporating alternative water supplies and appropriate treatment can accrue long-term savings

Natural waters are an alternative source to mains, subject to the availability of abstraction licences.

Where treatment is required, the processes used are relatively low in cost and are simple to operate. Iron and manganese, two common problem contaminants which cause discolouration of the water, are easily removed by aeration and/or pressure filtration using a variety of special catalytic filter media.

Scale deposits reduce the efficiency of heat transfer which means increased fuel costs and associated carbon footprint. However, hardness is easily removed by ion exchange softening.

Framlingham College in Suffolk is an independent school fortunate enough to have a private borehole. “The borehole is 30m deep”, says maintenance manager, Allan Card. “The water is pumped through an iron removal filter to a reservoir and is then pumped into the college building via a softener to supply hot water down services. The treatment system is serviced twice a year and the borehole pump every three years.” Neither water filters nor softeners remove microbiological contaminants from water, so disinfection by UV irradiation or chemical dosing, which is less easy to control, will be needed to ensure safety in cold down services, if a Legionella assessment identifies a risk.

Grey water recycling for flushing toilets has been much discussed but, so far, not widely implemented. The perceived problems of duplicate plumbing systems contributes to this situation, but so, too, does a lack of treated water quality standards. Packaged Membrane BioReactors (MBRs) can produce a high quality treated effluent suitable for most domestic uses. It can also be fed directly into a reverse osmosis plant to produce treated permeate better than required by the Water Quality Regulations. And every litre of grey water recycled is a litre that doesn’t contribute to sewerage costs.

Incorporating alternative water supplies, and treatment technology, at the design stage of new building doesn’t have to be expensive and can accrue long term savings in reducing the costs of drinking water supply and sewerage.

Mark Hadaway is managing director at Lubron Water Technology
